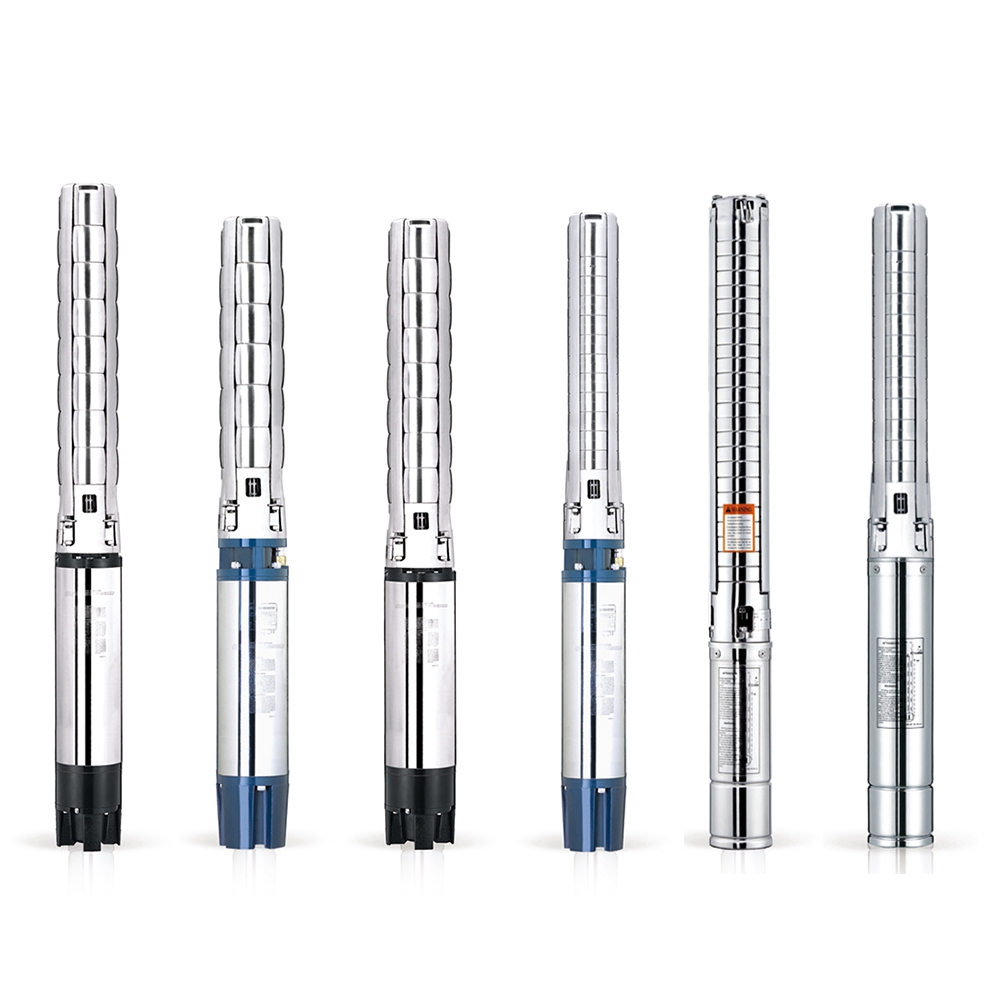

Submersible Clean Water Pump —SCM Series

The SCM type submersible well pump is a compact and powerful pump designed for use in residential and commercial well applications. It has a 5-inch diameter and close-coupled design that makes it easy to install and maintain. The pump is capable of efficiently and reliably pumping water from wells, reservoirs, and other sources.

Applications

Water supply from wells, tanks or reservoirs

Domestic, civil and industrial applications

Irrigation and rain water harvesting systems

Other garden uses

Features&Benefits

Compact close coupled design for easy installation and maintenance

5-inch diameter for powerful pumping capabilities

High efficiency motor for energy saving and longevity

Stainless steel built for durable and long-lasting service

Built in capacitor and control box for either internal or external control

Float switch available for automatic control

Model Selection

Working Conditions

Maximum Submersion Depth: 20 m

Maximum Fluid Temperature: 35°C

Maximum Solid Content: 0.15%

Minimum Well Dia.:φ130mm

Protection Class: IPX8

Insulation Class: B

Voltage: Single phase 220-240V/50Hz

Three phase 380-415V/50Hz (60Hz on option)
