SVQ-General Submersible Sewage Pumps

The SVQ submersible pumps with vortex impellers are designed for transferring wastewater and sewage containing soft suspended solids up to 35mm.They are ideal in household sewage disposal like septic tanks and cesspits, while also portable for flexible applications, such as building pits, trenches or flooded areas.

Applications

Domestic drainage

Sewage disposal

Septic tanks and cesspits emptying

Construction sites pumping and agricultural high flow drainage

Features&Benefits

Non block design , wide vortex channel for large solid passage

Resistant to corrosion, robust construction plus resistant cable

Motor Longevity, double M.seals with lip seal for triple leakage protection

Thermal Protector, add more protection to the motor

Automatic Control, control the pump on and off automatically

Multiple hose outlets, fit for various situations

Working Conditions

Submersible Depth: 5m from impeller centre

Max Liquid Temperature: 40°C

PH Scope of Liquid: 4~10

Protection Class: IPX8

Insulation Class: B

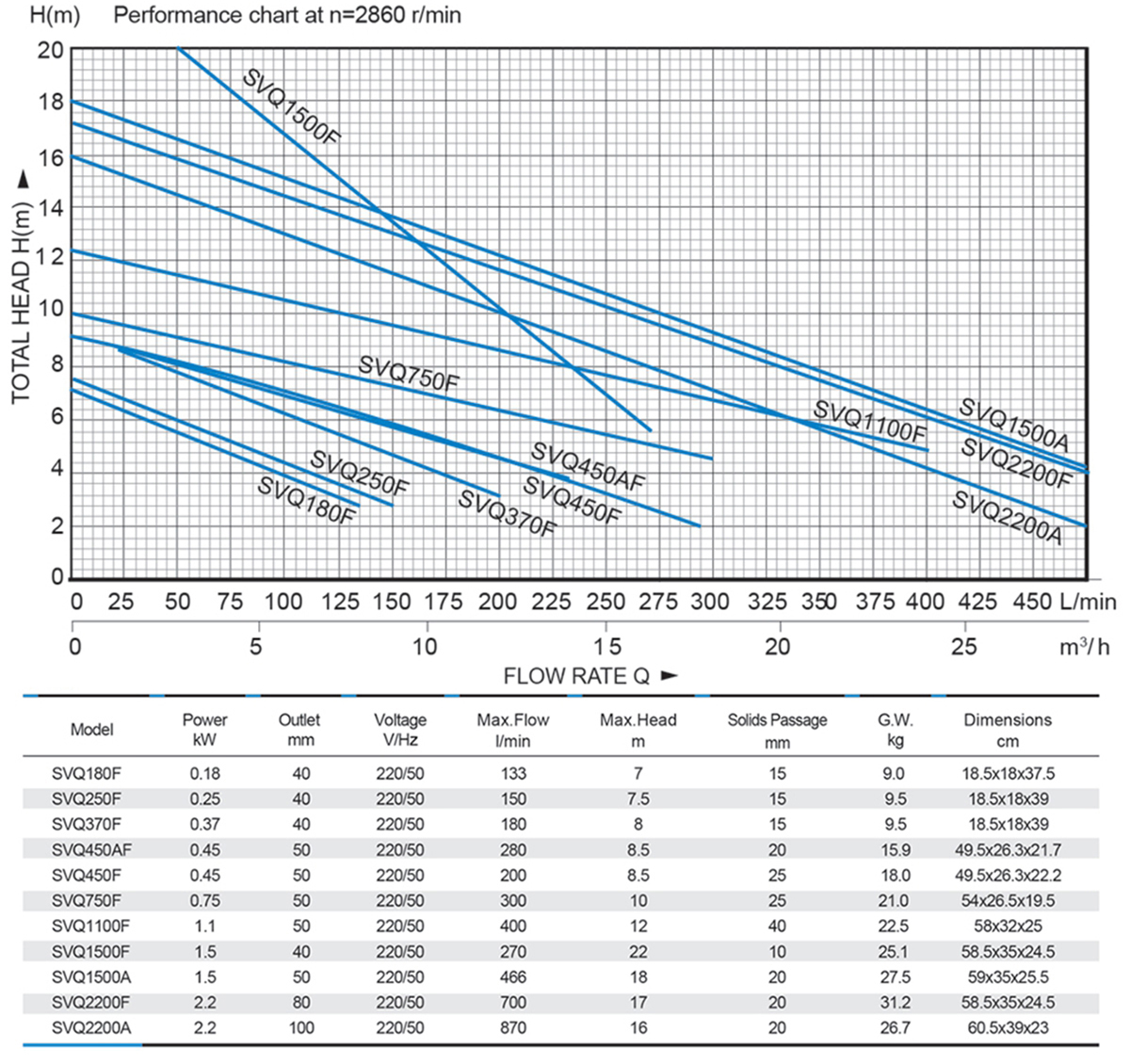

Model Selection
