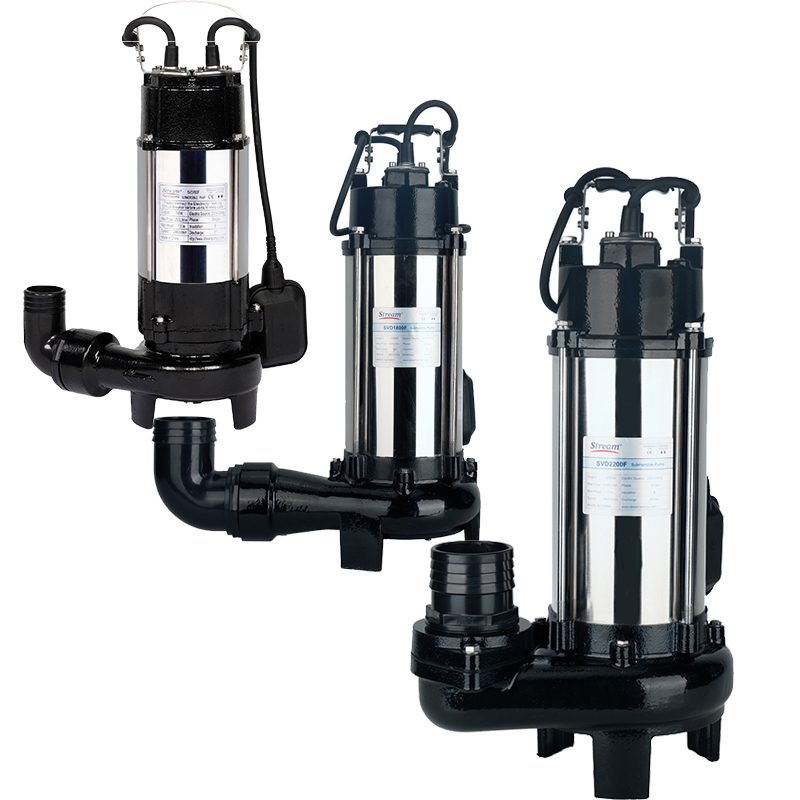

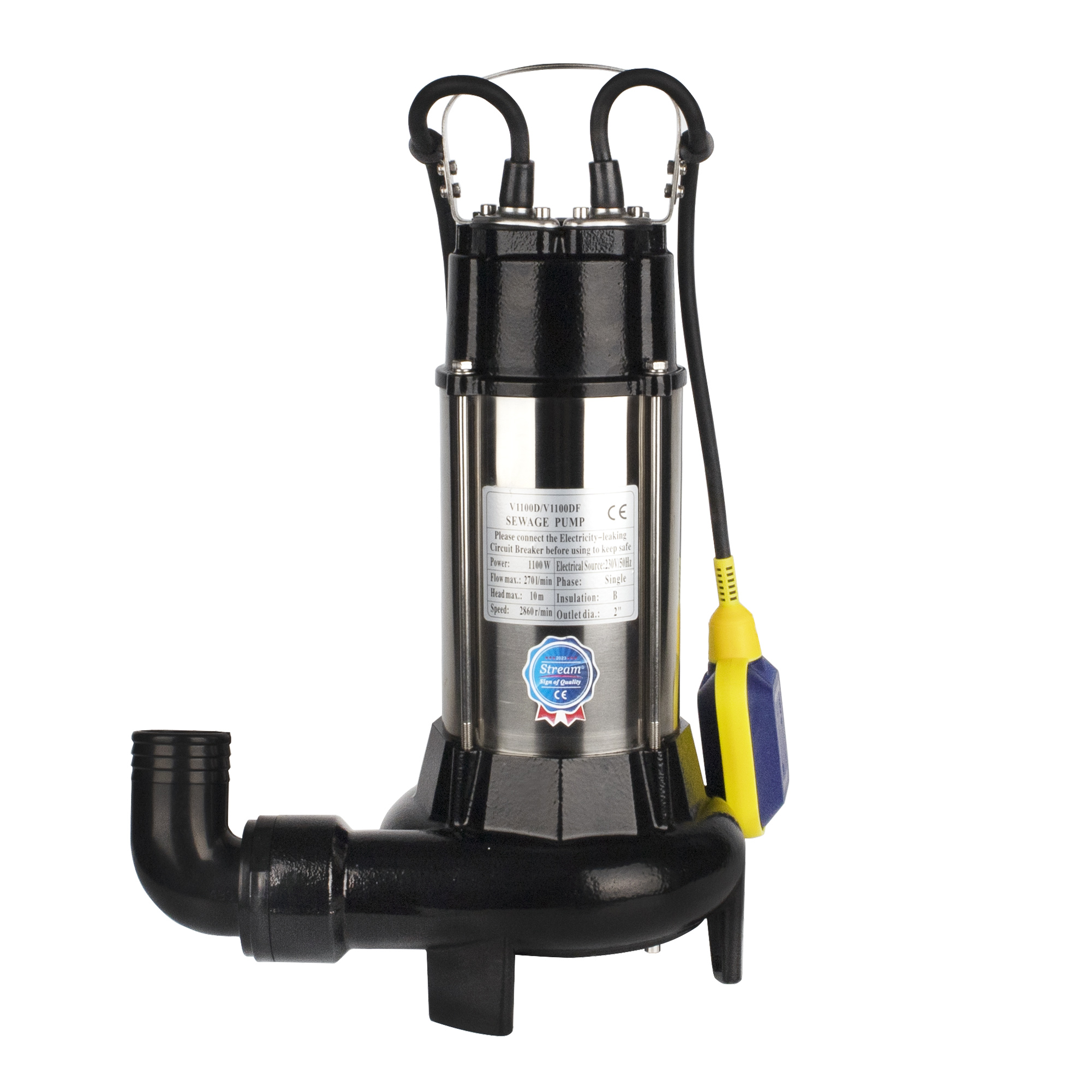

Stainless Steel Submersible Sewage Pump with Cutter Impeller

Application Fields

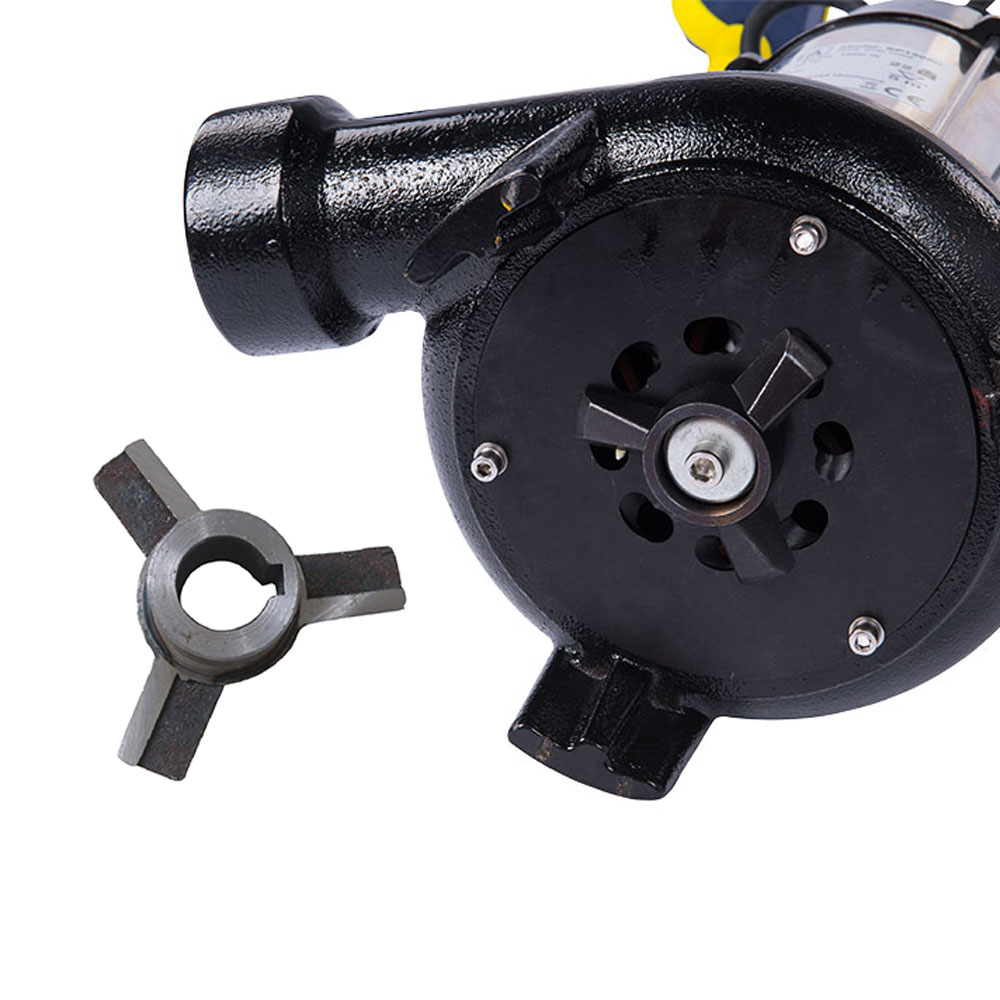

The SVD type submersible grinder pumps are designed with a cutter to crash solids into small pieces so that they can be led away through pipes of a relatively small diameter.submersible pump with cutter is ideal machine for draining sewage.A high-speed rotating cutter is assembled at the inlet hole of the pump，making it easy to cut off long-fibre and firm sundries contained in the sewage，so as to avoid the impeller blocked by the entanglement

Design Features

Grinding system, cut particles into smaller pieces

Resistant to corrosion, robust construction plus resistant cable

Motor Longevity, double M.seals with lip seal for triple leakage protection

Thermal Protector, add more protection to the motor

Automatic Control, control the pump on and off automatically

Application Limits

The maximum depth allowed in water is 5m from its center of impeller

The temperature of trans medium's shouldn't be higher than 40℃

The trans medium's PH scope is 4~10
